在深圳市民中心西侧原来有一个高交会馆的临时建筑，在会展中心建成之后就迁走了。这块空地便成了深圳最有价值的一块。所以它被规划为金融中心区便是情理之中了。政府在用地中央划了好大一块地给了我们最大的财神--深交所。深交所新大楼方案的设计师就是世界级大腕建筑师兰姆•库哈斯。库氏以CCTV大楼为国人所知。据说深交所选择库哈斯的主因之一是因为他是普里茨克建筑奖的得主。

普里茨克建筑奖为何物？形象地说，它就是建筑师的诺贝尔奖，建筑师个人的最高荣誉。它本来是一个由私人基金会颁发的建筑奖，该奖每年授予那些在建筑设计工作中充分展示出非凡的才华的在世的建筑师，是从1979年开始很快以其严谨公正和权威性得到国际公认的最重要建筑奖项。到今年已有30届，共有33名建筑师得此桂冠。

本月揭晓的2009普里茨克建筑奖的得主是瑞士建筑师彼得•祖姆托(Peter Zumthor)。 祖姆托是极少主义成为主流风格以来倍受推崇的人物。他的作品和思想常常被评论家与海德格的思想相联系。然而有趣的是祖氏本人一直在瑞士的一个小山城里面三十年如一日地开着小片荒，作品不是很多。就是在成名之后没有到处做项目，也没有名流做派。看来能够得奖说明他酿的这罐建筑之酒确实是够香的。

1996年祖姆托完成了为当地酒店设计的温泉浴室而成为极少主义的先锋之作。这个项目为他带来了国际声誉。但实际上这并不是巧合。他是以地域主义建筑态度被著名建筑评论家，哥伦比亚大学的弗兰普顿教授所肯定并将其列为极少主义之列的。弗兰普顿是当今建筑界的大伯乐，不知多少名师是被他捧红的。当然，没有实力是没人理会的。祖老先生不仅有作品，还有许多著述。很有不出山而知天下事的隐士风采。

祖姆托的设计都源于建筑材料，他自认有点像雕塑家一样工作。“我开始做设计的时候，第一个想法就是想建筑用什么材料。我相信建筑学就是关乎材料的，不是纸，也不是形式。”他的著作像哲理诗一样描述材料的关系，空间的音色和温度，以及室内外之间的张力，等等。作品和思想也反映了他对建筑传统和质朴中蕴含着的永恒意义的探求。得奖确是名至实归的。他的含蓄与踏实的作风也值得我们认真学习。

说回深圳，规划局打造新的金融中心的一个大手笔就是又请了一批国际大师把深交所周围的几个建筑做了一轮设计，包括两位普里茨克奖得主。听说金融家们不太买账。不过要请祖姆托的话，别说可能不会来，来了也未必找得到北。那些遍布深圳的水疗会所也绝不会有他老人家的用武之地的。

这是我周末的行程记录：

周五下午12:00出发赶1:30的班机4:30到达北京，6:00参加一位师兄的个展开幕式，8:30晚餐，10:30朋友聚会到午夜。周六10:00某地产公司办公室项目会；12:30外出午餐；4:00北京公司办公室高层会议至午夜；周日10:00银行,11:00见父母家人午餐，3:00建筑研讨会，6:30去机场，8:00起飞，11:00回到深圳。

太平常了。深圳人多数都是这样生活的。比这更紧张安排的大有人在。因为我们生活在一个快节奏的时代。我们引以为自豪的深圳速度让我们个个都像上了发条一样。“速度是技术革命送给人的礼物”。米兰·昆德拉在他的小说《慢》中将这个现象给了一个很好的阐述。他试图说明现代人不能享受快乐的主因就是太快。照此说来，我们深圳人的快乐指数是很成问题的。

我们所处的时代城市化的速度是爆炸式的，建设量是巨大的，建筑设计自然要求也快。这造成了我们建筑师的无尽痛苦，很多人的激情精力和才华都被这个快速给提前透支了。其导致的设计的平庸或者夸张直接反映到城市面貌的平庸和癫狂。

多年前我读过美国建筑师托德·威廉姆斯和比莉·钱（Tod Williams & Billie Tsien）写的一篇关于其设计思想的文章叫做《缓慢》，是直接受到昆德拉的影响。他们坚持“建筑是工作和生活的结合”的设计理念，强调在设计的各个阶段中缓慢的意义。哪怕是画棵配景树时都需要去想为什么画，怎么画。可想而知，这对夫妻档的作品数量是有限的。不过我参观过其作品，设计确实很到位。

无独有偶，我那位开个展的师兄齐欣也是一位享受生活和缓慢设计的建筑师。没有问过他是受到昆德拉的影响还是他的法国背景与昆德拉的法国生活相似才有相同的态度。我对这样的人充满敬意。去北京时造访齐欣，总会看到他坐在电脑前画图。从制图到做效果图都自己干，我一次惊异地发现他连室内家具都自己排。他自己讲是想办法从设计的过程中寻找快乐。所以他的设计都是轻松的甚至是幽默的。从另一个角度上说，齐氏设计的含金量是很高的，谁找他做设计就一个字：值。这个市场上，你能找到几个50岁以上的建筑名师亲自做设计带制图的呢？当然这法国面包坊式的做法是不能形成规模的。好的建筑师还是需要社会环境的宽待和培育。

有人说，当代社会里爱情是最大的奢侈品。其实缓慢的生活和工作方式更是一种奢侈，只有这样的奢侈才会持久地产生真正的建筑文化。

2004年美国的建筑师的世界里出现了一个不大不小的骚动。年初的奥斯卡奖最佳纪录片奖的提名中出现了一部名为《我的建筑师》的影片。影片的编导和片中采访人以私生子的身份追寻建筑师父亲的生命轨迹。而主人公就是现代建筑史上的巨匠路易·康(Louis Kahn)。

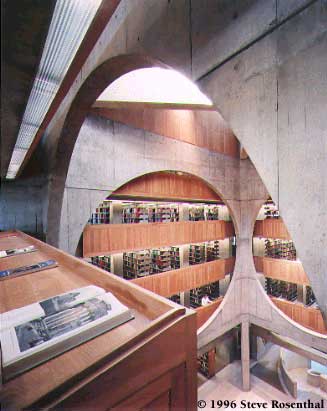

康是我们这些80年代接受建筑教育的人最先熟悉的建筑大师之一。然而那时我们学习的已经是他的遗作。1974年3月17日，负债累累心力交瘁的康刚刚从印度回来，倒在纽约的宾夕法尼亚车站的洗手间里。人们在他身上却找不到任何身份证明。在公立医院的停尸房里静静地躺了数日的康，终于被一位在医院做义工的建筑师认出。当时的报纸仅仅登出了一小条新闻。

康的地位十分特殊。我们经常把他作为现代建筑中承上启下的人物。他的作品与当时的晚期现代主义追求华丽的倾向不同，将现代主义的设计原则与古典主义的精神结合，追求一种建筑中永恒的精神价值。他最出名的代表作有加州萨克学院和耶鲁大学英国文化中心。在他的建筑中能够体验到一种静谧的伫立和默默地诉说的氛围。当人对时间的意识被空间消解掉，永恒感就出现了。康有一本作品集名为《沉默与光》，很贴切地表达了康的设计的精髓。康的典型语汇包括纯粹的几何图形，最原始的材料清水混凝土和木材，还有光。这些在他最后一个项目，孟加拉的达卡国家议会中心中有着完全的表达。

我自己最喜欢的作品是康晚期的金贝尔博物馆，位于美国德州沃思堡。一排安静的拱廊排列在一起，最后一排成为开敞的廊。建筑中央有几个院子。建筑的整体风格在简朴谦虚之中透显出高贵的气质。室内展厅中最出彩的就是将日光从拱顶折射到两侧的拱型天花上，使得普通的清水混凝土产生银光一样的质感，感觉就像置身于藏宝库之中。

康的建筑生涯充满了坎坷，50多岁才崭露头角，属于大器晚成。而成名之后的康本能够更自由地追求建筑理想，却因个人性格倔犟和不善沟通，加之不惜工本的设计投入使得事务所的经营陷入困境。他就是在独自往来达卡的路途中出事的。这种殉道式的个人悲剧反映了一个时代的状态。康去世的那一年正是洛杉矶奥运会举行的时间。资本突然找到了将体育娱乐艺术转换成巨大价值的方法。明星效应使名人的价值飙升，建筑大师们的日子也好过多了。如今我们看到的是乘私人飞机出行的福斯特（香港和北京新航站楼的设计者）和做中国项目后买了纽约豪宅的霍尔。

我的一位同学从美国打电话过来，让我一定去看这个纪录片《我的建筑师 My Architect: A Son's Journey》。他说看这个片子时候他泪流满面。





在当代建筑史上，能够与毕尔巴鄂古根海姆美术馆这样达到雅俗共赏和城市地标的建筑当属著名的悉尼歌剧院。如今没有人会质疑悉尼歌剧院的建筑魅力以及它对于悉尼乃至澳大利亚国家形象的提升作用。2007年，悉尼歌剧院被联合国教科文组织列入世界文化遗产，成为20世纪世界上最经典的建筑之一。

2008年11月29日，悉尼歌剧院的设计者，90岁高龄的丹麦建筑师约恩·伍重（Joern Utzon）在丹麦去世。澳洲人降半旗来纪念他。然而伍重当年在澳洲为歌剧院项目工作了7年，最终与政府建设方闹翻离开之后却再也没有回到过这块大陆，其中的情愫耐人寻味。



悉尼歌剧院历时13年建成，建设过程充满了曲折。工程费用超过预算几倍，几乎沦为烂尾，几度成为政治力量角力的焦点，起初其造型也不是人人叫好。它成了悉尼人的一块心病。问题的关键是出在那8个壳体结构上。原来设计时想得简单，两块薄壳合在一起就能立起来。然而事实却没有那么简单。1950年代没有电脑辅助设计的条件，结构计算和三维软件都没有出现的时候，这样的设计是相当复杂的。设计师们最后发现按照设计的曲率是无法用壳体方式实现的。最后的选择是用单根的肋支撑然后用再用钢骨连起来形成壳面。就像扇子一样的方式。吞噬了无数的追加投资之后，悉尼歌剧院这支“澳洲之花”在1973年终于绽放。30多年来它给澳洲带来的无形价值，旅游名胜带来的回报证明了这笔钱砸得值。



其实更有戏剧性的故事还发生在更早。1956年悉尼作为州府决定建设一座歌剧院，开始向全世界征集设计方案。评委之一是当时如日中天的建筑名师小沙里宁。当他来到评审会的时候，面对的是一批从三百多件提案中初选出来的方案。评委们评来评去，找不到一个满意的方案。无奈中小沙里宁回到被淘汰的方案里去翻看。忽然他被一个方案所吸引，推荐到评审会，结果这个伍重的提案被选为中标方案。



伍重的方案表达得非常草率，只有几张草图。连张像样的透视图都没有。这个纯属废标的东西却被小沙里宁“违规操作”回来最终成为经典，被传为佳话。



最近我参加了几次设计评审，看到我们的组织方以公正的名义设置好多莫名其妙的门槛和规定，曾经以一个标书上的与方案毫无关系的小节问题要求作为废标处理。这种情形使我十分担忧。设计投标与工程投标不同，唯一的目的是要评选好的设计，应该让建筑师把精力集中在设计的研究上。同时重要的竞赛要选择好的评审委员。深圳冠着设计之都的名号，攥着大把的银子，可如果没有一个好的选择机制，我们离创造建筑遗产恐怕还要等很多年。

上个周六是我记忆里深圳天气最好的一天。华侨城创意文化园每月一次的艺术集市照例开张。花花绿绿琳琅满目的街市，80后的青春气息与沁凉的空气扑面而来，令人心境大好。在街角的室外咖啡座里坐着第一次来深圳的美国建筑师柯瑞，安静地复习着他的汉语课。他说他住的旁边新开张的“Hip hotel”（时尚酒店）城市客栈很舒服，这个创意园也很有味道…。我说，这里是设计之都的火山一角啊。



在深圳生活了十年，真正真实的感受到城市发展所带来的变化。小时候宣传大好形势都喜欢用“一日千里”、“日新月异”这些个词，只有在这几年才体验出来。其实深圳是个幸运的城市，一不留神便在当代世界城市发展史上留下了重要的一笔。30年在人类历史上就是一瞬间，而一个千万人口的超大城市就平地而起，不能不说是一个奇迹。



近年接触到不少国际知名的学者到深圳来交流和访问。众多的城市问题研究的学者纷纷将目光投向深圳和它周圈的珠三角地区。当代世界建筑设计界的教父级大腕人物雷姆·库哈斯很早发现了深圳现象（Ram Koolhaas，荷兰OMA掌门人，北京CCTV大楼和深圳未来的深交所总部大楼为其作品）。他在1995年出了一本非常有影响力的书叫做《S,M,X,XL》，其后又出版名为《大跃进》的书，大篇幅的讨论深圳城市现象，甚至将红岭路口的邓小平画像作为书底的扉页。



库氏理论将深圳这类极端人工化的快速生成的典型的亚洲城市称为“一般性城市”（Generic City）。这类城市没有特殊的历史，没有确切的文化含义，只有高速变化的城市风景是最切实的参照。紧张忙碌的人们顾不上多想就被从一个场景抛入另一个场景之中。然而，当深入城市的各个角落，满眼看到的却是不完美的现实。几乎人人都在这个盘根错节的都市丛林里面挣扎着。太多问题是这个“一夜城市”（Instant City）的副产品。所以说深圳的城市缺乏文化的厚度和层次是自然的，而今城市已到了需要建设这些微观层面的时候。



晚上，与09深圳城市建筑双年展的策展人欧宁讨论展览的主题和框架。十几个设计界同仁聊得热火朝天。双年展对于深圳这样的寻求在国际中的定位的大城市是有如名片性质的意义的，至今它已经成功举办了两届。如果说第一届强调学术，是阳春白雪的确定档次，第二届是国际互动，新潮炫目地造势，那么今年12月开幕的这第三“板斧”就显得十分重要了。本届的主题“城市动员”很是契合深圳的现状，在设计之都的名号下也搞出一个轰轰烈烈来，是动员政府、企业和市民共同加入到展览的过程里来。对于我，最有意义的应当是动员全深圳的市民都来关心城市和设计，建筑用金钱无法砌筑的内心花园。

5月的马德里阳光明媚，带着亲睹委拉斯凯兹画作后的满足，我的注意力集中到下一个目的地，西班牙北部的毕尔巴鄂（Bilbao）。不为别的，就是去看弗兰克·盖里(Frank O.Gehry)设计的古根海姆博物馆。即使由于疏忽安排了通常是博物馆闭馆日的周一前往，我依旧是一夜火车，晃到了小城。

从火车站出来，冒着小雨一路向河边走去，像是看一部被告知过情节的电影，我只是处在一个不断印证的过程里。毕尔巴鄂，曾经的重要工业城市，几经兴衰到上世纪70年代已是尽显颓势。眼前是一座温馨古城，窄窄的街道两侧全是小店铺，人来人往，典型的旅游城市。这一切都得益于90年代初市政府进行的城市复兴计划。其中最重要的一笔就是与古根海姆基金会共同兴建博物馆。他们选择了美国加州的建筑大师弗兰克·盖里担纲设计。新博物馆于1997年落成。老盖里不负众望，推出了一个让全世界惊喜的设计。借助古根海姆基金会的雄厚基础和运作能力，该博物馆在几年之内便成为欧洲的博物馆新贵。来自世界各地的参观者每年超过了百万，由此带动毕尔巴鄂经济又兴旺了起来。成就了一座建筑救活一个城市的现代神话…

离博物馆只有几个街区远了，从暗红色的街道的尽头透来一片幽幽的银白色的光，宛如穿过一群沧桑满面的老妪的惊鸿一瞥。曾在书中无数次看过这个画面，我知道那就是博物馆。走出老城，开阔蜿蜒的河岸上，平缓的山岭下，赫然伫立着一座钛锌板包裹成的巨大雕塑般的建筑。一堆体量以弯卷的姿态舒展开来，给人无穷的想象空间，有人说它像一艘船，象征着城市过去造船业的历史；有人说它像一团燃烧的火焰。我看到的则是在压顶的阴霾下天水一色却又熠熠生辉的奇妙景象。庞大的身躯，太空时代的材料和独立的姿态无一不是标识着自我中心的地位：骄傲而不自负，优雅而不冷漠，热情而不失态。这样一个散发着艺术精神的建筑一定是受人喜爱的和成功的。

在建筑前倘佯良久，忽然旁边走来一年轻女子，惶惑地问我入口在哪里。我说今天闭馆啊。女子惊愕之余悲哀地说，我从罗马专门过来看古根海姆，是给自己的一个生日礼物啊。我正以深圳人特有的警觉在飞快地判断她是否有其它意图的时候，她已转身离去。我笑了，无论如何，一个普通人会从一个艺术的圣地前来拜谒，足以说明了神话还在继续。离开时我没有遗憾，因为我知道是上天给了我又一个理由再来窥视毕尔巴鄂的古根海姆的另一种惊艳。

这是花旗银行总部大楼结构危机事件的报道



CITY PERILS
THE FIFTY-NINE-STORY CRISIS
THE NEW YORKER, MAY 29, 1995, pp 45-53
What's an engineer's worst nightmare? To realize that the supports he designed for a skyscraper like Citicorp Center are flawed---and hurricane season is approaching.

BY JOE MORGENSTERN

ON a warm June day in 1978, William J. LeMessurier, one of the nation's leading structural engineers, received a phone call at his headquarters, in Cambridge, Massachusetts, from an engineering student in New Jersey. The young man, whose name has been lost in the swirl of subsequent events, said that his professor had assigned him to write a paper on the Citicorp tower, the slash-topped silver skyscraper that had become, on its completion in Manhattan the year before, the seventh-tallest building in the world.

LeMessurier found the subject hard to resist, even though the call caught him in the middle of a meeting. As a structural consultant to the architect Hugh Stubbins, Jr., he had designed the twenty-five-thousand-ton steel skeleton beneath the tower's sleek aluminum skin. And, in a field where architects usually get all the credit, the engineer, then fifty-two, had won his own share of praise for the tower's technical elegance and singular grace; indeed, earlier that year he had been elected to the National Academy of Engineering, the highest honor his profession bestows. Excusing himself from the meeting, LeMessurier asked his caller how he could help.

The student wondered about the columns--there are four--that held the building up. According to his professor, LeMessurier had put them in the wrong place.

"I was very nice to this young man," LeMessurier recalls. "But I said, 'Listen, I want you to tell your teacher that he doesn't know what the hell he's talking about, because he doesn't know the problem that had to be solved.' I promised to call back after my meeting and explain the whole thing."

The problem had been posed by a church. When planning for Citicorp Center began, in the early nineteen-seventies, the site of choice was on the east side of Lexington Avenue between Fifty-third and Fifty-fourth Streets, directly across the street from Citicorp's headquarters. But the northwest corner of that block was occupied by St. Peter's Church, a decaying Gothic structure built in 1905. Since St. Peter's owned the corner, and one of the world's biggest banking corporations wanted the whole block, the church was able to strike a deal that seemed heaven-sent: its old building would be demolished and a new one built as a free-standing part of Citicorp Center.

To clear space for the new church, Hugh Stubbins and Bill LeMessurier (he pronounces his name "LeMeasure") set their fifty-nine-story tower on four massive, nine-story-high stilts, and positioned them at the center of each side, rather than at each corner. This daring scheme allowed the designers to cantilever the building's corners seventy-two feet out over the church, on the northwest, and over a plaza on the southwest. The columns also produced high visual drama: a nine-hundred-and-fourteen-foot monolith that seemed all but weightless as it hovered above the street.

When LeMessurier called the student back, he related this with the pride of a master builder and the elaborate patience of a pedagogue; he, too, taught a structural-engineering class, to architecture students at Harvard. Then he explained how the peculiar geometry of the building, far from constituting a mistake, put the columns in the strongest position to resist what sailors call quartering winds--those which come from a diagonal and, by flowing across two sides of a building at once, increase the forces on both. For further enlightenment on the matter, he referred the student to a technical article written by LeMessurier's partner in New York, an engineer named Stanley Goldstein. LeMessurier recalls, "I gave him a lot of information, and I said, 'Now you really have something on your professor, because you can explain all of this to him yourself.'"

Later that day, LeMessurier decided that the information would interest his own students; like sailors, designers of tall buildings must know the wind and respect its power. And the columns were only part of the tower's defense against swaying in severe winds. A classroom lecture would also look at the tower's unusual system of wind braces, which LeMessurier had first sketched out, in a burst of almost ecstatic invention, on a napkin in a Greek restaurant in Cambridge: forty-eight braces, in six tiers of eight, arrayed like giant chevrons behind the building's curtain of aluminum and glass. ("I'm very vain," LeMessurier says. "I would have liked my stuff to be expressed on the outside of the building, but Stubbins wouldn't have it. In the end, I told myself I didn't give a damn--the structure was there, it'd be seen by God.")

LeMessurier had long since established the strength of those braces in perpendicular winds--the only calculation required by New York City's building code. Now, in the spirit of intellectual play, he wanted to see if they were just as strong in winds hitting from forty-five degrees. His new calculations surprised him. In four of the eight chevrons in each tier, a quartering wind increased the strain by forty per cent. Under normal circumstances, the wind braces would have absorbed the extra load without so much as a tremor. But the circumstances were not normal. A few weeks before, during a meeting in his office, LeMessurier had learned of a crucial change in the way the braces were joined.

THE meeting had been called, during the month of May, to review plans for two new skyscrapers in Pittsburgh. Those towers, too, were designed by Hugh Stubbins with LeMessurier as structural consultant, and the plans called for wind braces similar to those used in Citicorp Center, with the same specifications for welded joints. This was top of the-line engineering; two structural members joined by a skilled welder become as strong as one. But welded joints, which are labor-intensive and therefore expensive, can be needlessly strong; in most cases, bolted joints are more practical and equally safe. That was the position taken at the May meeting by a man from U.S. Steel, a potential bidder on the contract to erect the Pittsburgh towers. If welded joints were a condition, the project might be too expensive and his firm might not want to take it on.

To reassure him, LeMessurier put in a call to his office in New York. "I spoke to Stanley Goldstein and said, 'Tell me about your success with those welded joints in Citicorp.' And Stanley said, 'Oh, didn't you know? They were changed--they were never welded at all, because Bethlehem Steel came to us and said they didn't think we needed to do it.'' Bethlehem, which built the Citicorp tower, had made the same objection--welds were stronger than necessary, bolts were the right way to do the job. On August 1, 1974, LeMessurier's New York office--actually a venture in conjunction with an old-line Manhattan firm called the Office of James Ruderman--had accepted Bethlehem's proposal.

This news gave LeMessurier no cause for concern in the days immediately following the meeting. The choice of bolted joints was technically sound and professionally correct. Even the failure of his associates to flag him on the design change was justifiable; had every decision on the site in Manhattan waited for approval from Cambridge, the building would never have been finished. Most important, modern skyscrapers are so strong that catastrophic collapse is not considered a realistic prospect; when engineers seek to limit a building's sway, they do so for the tenants' comfort.

Yet now, a month after the May meeting, the substitution of bolted joints raised a troubling question. If the bracing system was unusually sensitive to quartering winds, as LeMessurier had just discovered, so were the joints that held it together. The question was whether the Manhattan team had considered such winds when it designed the bolts. "I didn't go into a panic over it," LeMessurier says. "But I was haunted by a hunch that it was something I'd better look into,"

On July 24th, he flew to New York, where his hunch was soon confirmed: his people had taken only perpendicular winds into account. And he discovered another "subtle conceptual error," as he calls it now--one that threatened to make the situation much worse.

To understand why, one must look at the interplay of opposing forces in a windblown building. The wind causes tension in the structural members--that is, it tries to blow the building down. At the same time, some of' that tension, measured in thousands, or even millions, of pounds, is offset by the force of gravity, which, by pressing the members together, tends to hold the building in place. The joints must be strong enough to resist the differential between these forces--the amount of wind tension minus the amount of compression.

Within this seemingly simple computation, however, lurks a powerful multiplier. At any given level of the building, the compression figure remains constant; the wind may blow harder, but the structure doesn't get any heavier. Thus, immense leverage can result from higher wind forces. In the Citicorp tower, the forty-per-cent increase in tension produced by a quartering wind became a hundred-and-sixty-per-cent increase on the building's bolts.

Precisely because of that leverage, a margin of safety is built into the standard formulas for calculating how strong a joint must be; these formulas are contained in an American Institute of Steel Construction specification that deals with joints in structural columns. What LeMessurier found in New York, however, was that the people on his team had disregarded the standard. They had chosen to define the diagonal wind braces not as columns but as trusses, which are exempt from the safety factor. As a result, the bolts holding the joints together were perilously few. "By then," LeMessurier says, "I was getting pretty shaky."

He later detailed these mistakes in a thirty-page document called "Project SERENE''; the acronym, both rueful and apt, stands for "Special Engineering Review of Events Nobody Envisioned." What emerges from this document, which has been confidential until now, and from interviews with LeMessurier and other principals in the events, is not malfeasance, or even negligence, but a series of miscalculations that flowed from a specific mind-set. In the case of the Citicorp tower, the first event that nobody envisioned had taken place when LeMessurier sketched, on a restaurant napkin, a bracing system with an inherent sensitivity to quartering winds. None of his associates identified this as a problem, let alone understood that they were compounding it with their fuzzy semantics. In the stiff, angular language of "Project SERENE," "consideration of wind from non-perpendicular directions on ordinary rectangular buildings is generally not discussed in the literature or in the classroom."

LeMessurier tried to take comfort from another element of Citicorp's advanced design: the building's tuned mass damper. This machine, built at his behest and perched where the bells would have been if the Citicorp tower had been a cathedral, was essentially a four-hundred-and-ten-ton block of concrete, attached to huge springs and floating on a film of oil. When the building swayed, the block's inertia worked to damp the movement and calm tenants' queasy stomachs. Reducing sway was of special importance, because the Citicorp tower was an unusually lightweight building;, the twenty-five thousand tons of steel in its skeleton contrasted with the Empire State Building's sixty-thousand-ton superstructure. Yet the damper, the first of its kind in a large building, was never meant to be a safety device. At best, the machine might reduce the danger, not dispel it.

BEFORE making a final judgment on how dangerous the bolted joints were, LeMessurier turned to a Canadian engineer named Alan Davenport, the director of the Boundary Layer Wind Tunnel Laboratory, at the University of Western Ontario, and a world authority on the behavior of buildings in high winds. During the Citicorp tower's design, Davenport had run extensive tests on scale models of the structure. Now LeMessurier asked him and his deputy to retrieve the relevant files and magnetic tapes. "If we were going to think about such things as the possibility of failure," LeMessurier says--the word "failure" being a euphemism for the Citicorp tower's falling down--"we would think about it in terms of the best knowledge that the state of the art can produce, which is what these guys could provide for me."

On July 26th, he flew to London, Ontario, and met with Davenport. Presenting his new calculations, LeMessurier asked the Canadians to evaluate them in the light of the original data. "And you have to tell me the truth," he added. "Don't go easy if it doesn't come out the right way." It didn't, and they didn't. The tale told by the wind-tunnel experts was more alarming than LeMessurier had expected. His assumption of a forty-per-cent increase in stress from diagonal winds was theoretically correct, but it could go higher in the real world, when storms lashed at the building and set it vibrating like a tuning fork. "Oh, my God," he thought, "now we've got that on top of an error from the bolts being under-designed." Refining their data further, the Canadians teased out wind-tunnel forces for each structural member in the building, with and without the tuned mass damper in operation; it remained for LeMessurier to interpret the numbers' meaning.

First, he went to Cambridge, where he talked to a trusted associate, and then he called his wife at their summer house in Maine. "Dorothy knew what I was up to," he says. "I told her, 'I think we've got a problem here, and I'm going to sit down and try to think about it.'" On July 28th, he drove to the northern shore of Sebago Lake, took an outboard motorboat a quarter of a mile across the water to his house on a twelve-acre private island, and worked through the wind-tunnel numbers, joint by joint and floor by floor.

The weakest joint, he discovered, was at the building's thirtieth floor; if that one gave way, catastrophic failure of the whole structure would follow. Next, he took New York City weather records provided by Alan Davenport and calculated the probability of a storm severe enough to tear that joint apart. His figures told him that such an event had a statistical probability of occurring as often as once every sixteen years--what meteorologists call a sixteen-year storm.

"That was very low, awesomely low," LeMessurier said, his voice hushed as if the horror of discovery were still fresh. "To put it another way, there was one chance in sixteen in any year, including that one." When the steadying influence of the tuned mass damper was factored in, the probability dwindled to one in fifty-five--a fifty-five-year storm. But the machine required electric current, which might fail as soon as a major storm hit.

As an experienced engineer, LeMessurier liked to think he could solve most structural problems, and the Citicorp tower was no exception. The bolted joints were readily accessible, thanks to Hugh Stubbins' insistence on putting the chevrons inside the building's skin rather than displaying them outside. With money and materials, the joints could be reinforced by welding heavy steel plates over them, like giant Band-Aids. But time was short; this was the end of July, and the height of the hurricane season was approaching. To avert disaster, LeMessurier would have to blow the whistle quickly on himself. That meant facing the pain of possible protracted litigation, probable bankruptcy, and professional disgrace. It also meant shock and dismay for Citicorp's officers and shareholders when they learned that the bank's proud new corporate symbol, built at a cost of a hundred and seventy-five million dollars, was threatened with collapse.

On the island, LeMessurier considered his options. Silence was one of them; only Davenport knew the full implications of what he had found, and he would not disclose them on his own. Suicide was another, if LeMessurier drove along the Maine Turnpike at a hundred miles an hour and steered into a bridge abutment, that would be that. But keeping silent required betting other people's lives against the odds, while suicide struck him as a coward's way out and--although he was passionate about nineteenth-century classical music--unconvincingly melodramatic. What seized him an instant later was entirely convincing, because it was so unexpected almost giddy sense of power. "I had information that nobody else in the world had," LeMessurier recalls. "I had power in my hands to effect extraordinary events that only I could initiate. I mean, sixteen years to failure--that was very simple, very clear-cut. I almost said, thank you, dear Lord, for making this problem so sharply defined that there's no choice to make.' '

At his office in Cambridge on the morning of Monday, July 31st, LeMessurier tried to reach Hugh Stubbins whose firm was upstairs in the same building, but Stubbins was in California and unavailable by phone. Then he called Stubbins' lawyer, Carl Sapers, and outlined the emergency over lunch. Sapers advised him against telling Citicorp until he had consulted with his own company's liability insurers, the Northbrook Insurance Company, in Northbrook, Illinois. When LeMessurier called Northbrook, which represented the Office of James Ruderman as well, someone there referred him to the company's attorneys in New York and warned him not to discuss the matter with anyone else.

At 9 A.M. on Tuesday, in New York, LeMessurier faced a battery of lawyers who, he says, "wanted to meet me to find out if I was nutty." Being lawyers, not engineers, they were hard put to reconcile his dispassionate tone with the apocalyptic thrust of his prophecy. They also bridled at his carefully qualified answers to seemingly simple questions. When they asked how big a storm it would take to blow the building down, LeMessurier confined himself to statistical probabilities-- storm that might occur once in sixteen years.

When they pressed him for specific wind velocities--would the wind have to be at eighty miles per hour, or ninety, or ninety-five?--he insisted that such figures were not significant in themselves, since every structure was uniquely sensitive to certain winds; an eighty-five-mile-per-hour wind that blew for sixteen minutes from the northwest might pose less of a threat to a particular building than an eighty-mile-per-hour wind that blew for fourteen minutes from the southwest.

But the lawyers certainly understood that they had a crisis on their hands, so they sent for an expert adviser they trusted: Leslie Robertson, an engineer who had been a structural consultant for the World Trade Center. "I got a phone call out of the blue from some lawyer summoning me to a meeting," Robertson says." 'What's it about?' 'You'll find out when you get there.' 'Sorry, I have other things to do--I don't attend meetings on that basis.' A few minutes later, I got another call, from another lawyer, who said there'd been a problem with Citicorp Center. I went to the meeting that morning, and I didn't know anybody there but Bill. He stood up and explained what he perceived were the difficulties with the building, and everyone, of course, was very concerned. Then they turned to me and said, 'Well?' I said, 'Look, if this is in fact the case, you have a very serious problem.'"

The two structural engineers were peers, but not friends. LeMessurier was a visionary with a fondness for heroic designs, though he was also an energetic manager. Robertson was a stickler for technical detail, a man fascinated by how things fit together. LeMessurier, older by two years, was voluble and intense, with a courtly rhetorical style. Robertson was tall, trim, brisk, and edgily funny, but made no effort to hide his impatience with things that didn't interest him.

In addition to his engineering expertise, Robertson brought to the table a background in disaster management. He had worked with such groups as the National Science Foundation and the National Research Council on teams that studied the aftermaths of earthquakes, hurricanes, and floods. (In 1993, he worked with the F.B.I. on the World Trade Center bombing.) For the liability lawyers, this special perspective enhanced his stature as a consultant, but it unsettled LeMessurier from the start. As he remembers it, "Robertson predicted to everybody present that within hours of the time Citicorp heard about this the whole building would be evacuated. I almost fainted. I didn't want that to happen." (For his part, Robertson recalls making no such dire prediction.)

LeMessurier didn't think an evacuation would be necessary. He believed that the building was safe for occupancy in all but the most violent weather, thanks to the tuned mass damper, and he insisted that the damper's reliability in a storm could be assured by installing emergency generators. Robertson conceded the importance of keeping the damper running--it had performed flawlessly since it became operational earlier that year---but, because, in his view, its value as a safety device was unproved, he flatly refused to consider it as a mitigating factor. (In a conversation shortly after the World Trade Center bombing, Robertson noted dryly that the twin towers' emergency generators "lasted for fifteen minutes.")

One point on which everyone agreed was that LeMessurier, together with Stubbins, needed to inform Citicorp as soon as possible. Only Stubbins had ever dealt directly with Citicorp's chairman, Walter B. Wriston, and he was flying home that same day from California and still didn't know his building was flawed. That evening, LeMessurier took the shuttle to Boston, went to Stubbins' house in Cambridge, and broke the news. "He winced, I must admit--here was his masterpiece," LeMessurier says. "But he's a man of enormous resilience, a very grown man, and fortunately we had a lifelong relationship of trust."

The next morning, August 2nd, Stubbins and LeMessurier flew to New York, went to LeMessurier's office at 515 Madison Avenue, put in a call to Wriston, but failed to penetrate the layers of secretaries and assistants that insulated Citicorp's chairman from the outside world. They were no more successful in reaching the bank's president, William I. Spencer, but Stubbins finally managed to get an appointment with Citicorp's executive vice-president, John S. Reed, the man who has now succeeded Wriston as chairman. LeMessurier and Stubbins went to see Reed at the bank's ornate executive offices, in an older building on Lexington Avenue, across the street from Citicorp Center. LeMessurier began by saying, "I have a real problem for you, sir."

Reed was well equipped to understand the problem. He had an engineering background, and he had been involved in the design and construction of Citicorp Center, the company had called him in when it was considering the tuned mass damper. Reed listened impassively as LeMessurier detailed the structural defect and how he thought it could be fixed. LeMessurier says, "I'd already conceived that you could build a little plywood house around each of the connections that were critical, and a welder could work inside it without damaging the tenants' space. You might have to take up the carpet, take down the sheetrock, and work at night, but all this could be done. But the real message I conveyed to him was 'I need your help--at once.' '

When Reed asked how much the repairs would cost, LeMessurier offered an estimate of a million dollars. At the end of the meeting, which lasted half an hour, Reed thanked the two men courteously, though noncommittally, and told them to go back to their office and await further instructions. They did so, but after waiting for more than an hour they decided to go out to lunch. As they were finishing their meal, a secretary from LeMessurier's office called to say that John Reed would be in the office in ten minutes with Walter Wriston.

In the late nineteen-seventies, when Citicorp began its expansion into global banking, Wriston was one of the most influential bankers in the country. A tall man of piercing intelligence, he was not known for effusiveness in the best of circumstances, and LeMessurier expected none now, what with Citicorp Center--and his own career---literally hanging in the balance. But the bank's chairman was genuinely proud of the building, and he offered his support in getting it fixed.

"Wriston was fantastic," LeMessurier says. "He said, 'I guess my job is to handle the public relations of this, so I'll have to start drafting a press release.'" But he didn't have anything to write on, so someone handed him a yellow pad. That made him laugh. According to LeMessurier, "'All wars,' Wriston said, 'are won by generals writing on yellow pads.'" In fact, Wriston simply took notes; the press release would not go out for six days. But his laughter put the others at ease. Citicorp's general was on their side.

WITHIN hours of Wriston's visit, LeMessurier's office arranged for emergency generators for the tower's tuned mass damper. The bank issued beepers to LeMessurier and his key engineers, assuring them that Reed and other top managers could be reached by phone at any hour of the day or night. Citicorp also assigned two vice-presidents, Henry DeFord III and Robert Dexter, to manage the repairs; both had overseen the building's construction and knew it well.

The next morning, Thursday, August 3rd, LeMessurier, Robertson, and four of LeMessurier's associates met with DeFord and Dexter in a conference room on the thirtieth floor of Citicorp Center. (The decision to hold the initial meeting near the structure's weakest point was purely coincidental.) LeMessurier outlined his plan to fix the wind braces by welding two-inch-thick steel plates over each of more than two hundred bolted joints. The plan was tentatively approved, pending actual examination of a typical joint, but putting it into effect depended on the availability of a contractor and on an adequate supply of steel plate. Since Bethlehem Steel had dropped out of the business of fabricating and erecting skyscraper structures, Robertson suggested Karl Koch Erecting, a New Jersey-based firm that had put up the World Trade Center.

"I called them," Robertson says, "and got, 'Well, we're a little busy right now,' and I said, 'Hey, you don't understand what we're talking about here.'" A few hours later, two Koch engineers joined the meeting. LeMessurier and Robertson took them to an unoccupied floor of the building, and there workmen tore apart enough sheetrock to expose a diagonal connection. Comparing the original drawings of the joints with the nuts-and-bolts reality before their eyes, the engineers concluded that LeMessurier's plan was indeed feasible. Koch also happened to have all the necessary steel plate on band, so Citicorp negotiated a contract for welding to begin as soon as LeMessurier's office could issue new drawings.

Two more contracts were drawn up before the end of the following day. One of them went out to MTS Systems Corporation, the Minneapolis firm that had manufactured the tuned mass damper. MTS was asked to provide full-time technical support--in effect, around-the-dock nurses--to keep its machine in perfect health. The company flew one of its technicians to New York that night. Four days later, in a letter of agreement, MTS asked Citicorp to provide a long list of materials and spare parts, which included three buckets, a grease gun, rags, cleaning solvent, and "1 Radio with weather band."

The other contract engaged a California firm, also recommended by Robertson, to fit the building with a number of instruments called strain guages--pieces of tape with zigzag wires running through them. The guages would be affixed to individual structural members, and electrical impulses from them would be funneled to an improvised communications center in Robertson's office, eight blocks away, at 230 Park Avenue; like a patient in intensive care, the tower would have every shiver and twitch monitored. But this required new telephone lines, and the phone company refused to budge on its leisurely installation schedule. When Robertson voiced his frustration about this during a late-night meeting in Walter Wriston's office, Wriston picked up the phone on his desk and called his friend Charles Brown, the president and chief operating officer of AT&T. The new lines went in the next morning.

A different problem-solving approach was taken by Robertson during another nighttime meeting in Citicorp's executive suite. Wriston wanted copies of some documents that Robertson had shown him, but all the secretaries had gone home--the only people' on the floor were Wriston, Robertson, and John Reed--and every copying machine was locked. "I'm an engineer," Robertson says, "so I kneeled down, tipped the door off one of the machines, and we made our copies. I looked up at them a little apologetically, but, what the hell--fixing the door was a few hundred bucks, and these guys had a hundred-and-seventy-five-million-dollar building in trouble across the street."

Robertson also assembled an advisory group of weather experts from academia and the government's Brookhaven National Laboratory, on Long Island, and hired two independent weather forecasters to provide wind predictions four times a day. "What worried us more than hurricanes, which give you hours and days to anticipate, were unpredictable events," Robertson says. "From time to time, we've had small tornadoes in this area, and there was a worry that a much bigger one would come down and take hold." Then Robertson raised an issue that LeMessurier had dreaded discussing. In a meeting on Friday that included LeMessurier, Robertson told Citicorp's representatives, DeFord and Dexter, that they needed to plan for evacuating Citicorp Center and a large area around it in the event of a high-wind alert.

DURING the first week of August, discussions had involved only a small circle of company officials and engineers. But the circle widened on Monday, August 7th, when final drawings for the steel plates went out to Arthur Nusbaum, the veteran project manager of HRH Construction, which was the original contractor for Citicorp Center, and Nusbaum, in turn, provided them to Koch Erecting. And it would widen again, because work could not go forward, as Robertson reminded the officials, without consulting the city's Department of Buildings. Citicorp faced a public-relations debacle unless it came up with a plausible explanation of why its brand-new skyscraper needed fixing.

That night, DeFord and Dexter, following Robertson's advice, met with Mike Reilly, the American Red Cross's director of disaster services for the New York metropolitan area. 'They laid out the dilemma, and it was clearly an ominous event," Reilly recalls. From that first meeting, which was attended by Robertson but not by LeMessurier, and from half a dozen subsequent working sessions with other disaster agencies, came plans for joint action by the police and the mayor's Office of Emergency Management, along with the Red Cross. In the event of a wind alert, the police and the mayor's emergency forces would evacuate the building and the surrounding neighborhood, and the Red Cross would mobilize between twelve hundred and two thousand workers to provide food and temporary shelter. "Hal DeFord was the bank's point man for all this," Reilly says. "The anxiety was so heavy on him that we if he was going to make it."

On Tuesday morning, August 8th, the public-affairs department of Citibank, Citicorp's chief subsidiary, put out the long delayed press release. In language as bland as a loan officer's wardrobe, the three-paragraph document said unnamed "engineers who designed the building" had recommended that "certain of the connections in Citicorp Center's wind bracing system be strengthened through additional welding.'' The engineers, the press release added, "have assured us that there is no danger." When DeFord expanded on the handout in interviews, he portrayed the bank as a corporate citizen of exemplary caution--"We wear both belts and suspenders here," he told a reporter for the News--that had decided on the welds as soon as it learned of new data based on dynamic-wind tests conducted at the University of Western Ontario.

There was some truth in all this. During LeMessurier's recent trip to , one of Alan Davenport's assistants had mentioned to him that probable wind velocities might be slightly higher, on a statistical basis, than predicted in 1973, during the original tests for Citicorp Center. At the time, LeMessurier viewed this piece of information as one more nail in the coffin of his career, but later, recognizing it as a blessing in disguise, he passed it on to Citicorp as the possible basis of a cover story for the press and for tenants in the building.

On Tuesday- afternoon at a meeting in Robertson's office, LeMessurier told the whole truth to New York City's Acting Building Commissioner and nine other senior city officials. For more than an hour, he spoke about the effect of diagonal winds on the Citicorp tower, about the failure of his own office to perceive and communicate the danger, and about the intended repairs.

In the discussion that followed, the city officials asked a few technical questions, and Arthur Nusbaum expressed concern over a shortage of certified welders who had passed the city's structural-welding test. That would not be a problem, the representatives from the Department of Buildings replied; one of the area's most trusted steel inspectors, Neil Moreton, would have the power to test and immediately certify any welder that Citicorp's repair project required. Nusbaum recalls, "Once they said that, I knew we were O.K., because there were steamfitter welders all over the place who could do a fantastic job."

Before the city officials left, they commended LeMessurier for his courage and candor, and expressed a desire to be kept informed as the repair work progressed. Given the urgency of the situation, that was all they could reasonably do. "It wasn't a case of 'We caught you, you skunk,'" Nusbaum says. "It started with a guy who stood up and said, 'I got a problem, I made the problem, let's fix the problem.' If you're gonna kill a guy like LeMessurier, why should anybody ever talk?"

Meanwhile, Robertson's switchboard was besieged by calls. "Every reporter in town wanted to know how come all these people were in our office," Robertson says. Once the meeting ended, the Building Commissioner returned the reporters' calls and, hewing to Citicorp's line, reassured them that the structural work was only a prudent response to new meteorological data.

As a result, press coverage in New York City the next day was as uninformative as the handout: a short piece in the Wall Street Journal, which raised no questions about the nature of the new data, and one in the News, which dutifully quoted DeFord's remark about belts and suspenders. But when LeMessurier went back to his hotel room, at about 5 P.M. on Wednesday, he learned from his wife, who had come down from Cambridge to join him, that a reporter from the Times had been trying to reach him all afternoon. That worried him greatly', being candid with city officials was one thing, but being interrogated by the Times was another. Before returning the call, LeMessurier phoned his friend Carl Sapers, the Boston attorney who represented Hugh Stubbins, and mixed himself a Martini. Sapers understood the need for secrecy, but he saw no real choice; talk to them, he said, and do the best you can. Two minutes after six o'clock, LeMessurier called the Times switchboard. As he braced himself for an unpleasant conversation, he heard a recording. The Times, along with all the other major papers in the city, had just been shut down by a strike.

WELDERS started work almost immediately, their torches a dazzlement in the night sky. The weather was sticky, as it had been since the beginning of the month--New Jersey's tomato crop was rotting from too much rained forecasts called for temperatures in the mid-eighties the next day, with no wind; in other words, a perfect day for Citicorp Center.

Yet tropical storms were already churning the Caribbean. Citicorp pushed for repair work around the clock, but Nusbaum refused to allow welding during office hours, for fear that clouds of acrid smoke would cause panic among the tenants and set off every smoke detector in the building. Instead, he brought in drywall crews and carpenters to work from 5 P.M. to 8 P.M., putting up plywood enclosures around the chevrons and tearing down Sheetrock; welders to weld from 8 P.M. until 4 A.M., with the building's fire-alarm system shut off; and then laborers to clean up the epic mess before the first secretaries arrived.

The welders worked seven days a week. Sometimes they worked on unoccupied floors; sometimes they invaded lavish offices. But decor, or the lack of it, had no bearing on their priorities, which were set by LeMessurier. "It was a tense time for the whole month," he says. "I was constantly calculating which joint to fix next, which level of the building was more critical, and I developed charts and graphs of all the consequences: if you fix this, then the rarity of the storm that will cause any trouble lengthens to that."

At Robertson's office, a steady stream of data poured in from the weather forecasters and from the building itself. Occasionally, the strain-gage readings jumped, like spikes on an electrocardiogram, when the technicians from MTS Systems exercised their tuned mass damper to make sure it was working properly. One time, the readings went off the chart, then stopped. This provoked more bafflement than fear, since it seemed unlikely that a hurricane raging on Lexington and Fifty-third Street would go otherwise unnoticed at Forty-sixth and Park. The cause proved to be straightforward enough: When the instrumentation experts from California installed their strain guages, they had neglected to hire union electricians. "Someone heard about it," LeMessurier says, "went up there in the middle of the night, and snipped all the wires."

For most of August, the weather smiled on Citicorp, or at least held its breath, and the welders made steady progress. LeMessurier felt confident enough to fly off with his wife for a weekend in Maine. As their return flight was coming in for a landing at LaGuardia Airport Sunday night, they looked out across the East River and saw a pillar of fire on the Manhattan skyline. "The welders were working up and down the building, fixing the joints," LeMessurier recalls. "It was an absolutely marvelous thing to see. I said to Dorothy, 'Isn't this wonderful? Nobody knows what's going on, but we know and we can see it tight them in the sky.'"

A great deal of work remained. Robertson was insisting on a complete reevaluation of the Citicorp tower: not just the sensitivity of the chevrons to quartering winds but the strength of other skeletal members, the adequacy of braces that kept the supporting columns in plumb, and the rigidity of the building's corrugated metal-and-concrete floors, which Robertson feared might be compromised by trenches carrying electrical connections.

His insistence was proper--settling for less would have compromised Robertson's own position. It amounted to a post-construction autopsy by teams of forensic engineers. For LeMessurier, the reevaluation was harrowing in the extreme; every new doubt about his design for Citicorp Center reflected on him.

In one instance, Robertson's fears were unwarranted: tests showed that the tower floors were entirely sound--the trenches were not a source of weakness. In another, Robertson, assuming the worst about construction tolerances, decided that the columns might be slightly, even though undetectably, out of plumb, and therefore he ordered the installation of supplemental bracing above the fourteenth floor.

Shortly before dawn on Friday, September 1st, weather services carried the news that everyone had been dreading-- major storm, Hurricane Ella, was off Cape Hatteras and heading for New York. At 6:30 A.M., an emergency-planning group convened at the command center in Robertson's office. "Nobody said, 'We're probably going to press the panic button,'" LeMessurier recalls. "Nobody dared say that. But everybody was sweating blood."

As the storm bore down on the city, the bank's representatives, DeFord and Dexter, asked LeMessurier for a report on the status of repairs. He told them that the most critical joints had already been fixed and that the building, with its tuned mass damper operating, could now withstand a two-hundred-year storm. It didn't have to, however. A few hours later, Hurricane Ella veered from its northwesterly course and began moving out to sea.

LeMessurier spent the following night in Manhattan, having canceled plans to spend the Labor Day weekend with his family in Maine. But the hurricane kept moving eastward, and daybreak dispelled any lingering thoughts of evacuation. "Saturday was the most beautiful day that the world's ever seen," LeMessurier says, "with all the humidity drawn away and the skies sunny and crystal dear." Alone in the city, he gave himself a treat he'd been thinking about for years--his first visit to the Cloisters, where he basked in an ineffable calm.

THE weather watch ended on September 13th. That same day, Robertson recommended terminating the evacuation plans, too. Welding was completed in October, several weeks before most of the city's newspapers resumed publication. No further stories on the subject appeared in the wake of the strike. The building, in fact, was now strong enough to withstand a seven-hundred-year storm even without the damper, which made it one of the safest structures ever built--and rebuilt--by the hand of man.

Throughout the summer, Citicorp's top management team had concentrated on facilitating repairs, while keeping the lawyers on the sidelines. That changed on September 13th, when Citicorp served notice on LeMessurier and Hugh Stubbins, whose firm held the primary contract, of its intention to seek indemnification for all costs. Their estimate of the costs, according to LeMessurier, amounted to $4.3 million, including management fees. A much higher total was suggested by Arthur Nusbaum, who recalled that his firm, HRH Construction, spent eight million dollars on structural repairs alone. Citicorp has declined to provide its own figure.

Whatever the actual cost, Citicorp's effort to recoup it was remarkably free of the punitive impulse that often poisons such negotiations. When the terms of a settlement were first discussed--without lawyers--by LeMessurier, on one side, and DeFord and Dexter, on the other, LeMessurier spoke of two million dollars, which was the amount that his liability insurer, the Northbrook Insurance Company, had agreed to pay. "DeFord and Dexter said, 'Well, we've been deeply wounded here,' and they tried to play hardball," LeMessurier says. "But they didn't do it with much conviction.'' After a second meeting, which included a Northbrook lawyer, the bank agreed to hold Stubbins' firm harmless and to accept the two-million-dollar payment from LeMessurier and his joint-venture partners; no litigation ever ensued. Eight years ago, Citicorp turned the building into a condominium, retaining the land and the shops but selling all the office space, to Japanese buyers, at a handsome profit.

The crisis at Citicorp Center was noteworthy in another respect. It produced heroes, but no villains; everyone connected with the repairs behaved in exemplary fashion, from Walter Wriston and his Citicorp management team to the officials at the city's Department of Buildings. The most striking example, of course, was set by LeMessurier, who emerged with his reputation not merely unscathed but enhanced. When Robertson speaks of him, he says, "I have a lot of admiration for Bill, because he was very forthcoming. While we say that all engineers would behave as he did, I carry in my mind some skepticism about that."

In the last few years, LeMessurier has been talking about the summer of 1978 to his classes at Harvard. The tale, as he tells it, is by turns painful, self-deprecating, and self-dramatizing--an engineer who did the right thing. But it also speaks to the larger question of how professional people should behave. "You have a social obligation," LeMessurier reminds his students. "In return for getting a license and being regarded with respect, you're supposed to be self-sacrificing and look beyond the interests of yourself and your client to society as a whole. And the most wonderful part of my story is that when I did it nothing bad happened." *



莲花山顶小平像后面有一个高级公共厕所，是一个非常现代的设计，深圳著名建筑师费晓华的力作。一座桥将厕所带入树林，被几根斜柱支撑在山坡上，即隐蔽又亲近自然。最有意思的是在小便池上方有一个窄窄的水平带窗，让人在方便时也能够欣赏到外面的美景。建议读者去实地参观体验一下这个颇有诗意的如厕经历。深圳有这样水准的公共厕所，全国文明城市的称号真不是白拿的。

当年上大学学建筑设计的时候，厕所都写成“WC”。令人不解的是，在外国杂志却看不到这种表达。后来才搞明白原来是“water closet”的简称，是被现代英语淘汰的老词了。现在厕所的普遍雅称是toilet，公共场所叫restroom比较多，家里就叫bathroom，飞机上的则标为lavatory，等等。不过WC这个强调冲水观念的词的确让人体会到了西方人折腾了300年才搞定的这套系统有多不容易。难怪某英国杂志将抽水马桶评为世界上最伟大的发明之一。

前不久地产名人潘石屹宣布要在自己家乡甘肃陇南的天水捐建10个18万造价的冲水厕所给10所学校，让孩子们从小就在豪华厕所里受到文明的熏陶。其实按本人在陇南灾区的经验，修一个能抗震的厕所，18万是豪华不了的，更不用提这缺水的地方根本使不起水了。不过老潘的这个不太靠谱的善举确实还点中了中国乡村厕所设施落后的窘迫之处。我国大部分农村地区都还在使用简陋的旱厕，亟待改善。

最近一直在四川进行灾后重建的台湾草根建筑师谢英俊设计的改良厕所算是真的在为农民兄弟排忧解难。他的方法就是采用尿便分离的方式，用土覆盖粪便成为肥料，同时避免蝇虫和臭气，简单廉价而且有效。我想这是在农村推进文明进步的有意义的一步。

在我们的现代城市，抽水马桶和排污系统的技术早已完善和普及，对待厕所的观念就是更多的表现在精神层面上了。比如把厕所和餐厅放在一起，挑战的是你的观念；把厕所设计成外面完全反光，而内部透明的方式挑战的是你的胆量。其实中国古代的豪华厕所是很讲究的，比如皇家的厕所都是有床榻和香薰。野史上武则天和太子李治就是在设备豪华如寝宫的厕所里发生第一次亲密接触的。可惜老祖宗的这套讲究没传下来，反而同样是出自西方宫廷的抽水马桶却传到了民间，改写了文明的历史。我基本上同意将厕所的设计和使用水准与文明程度挂上钩，至少是一个表象。
